TrueWatch Demo Usage and Deployment Instructions

Function Description

• Outputs "RUM" data, covering Session View, Action, LongTask, Error, and provides data for both Native View and Webview pages
• Outputs "Log" data
• Outputs "Application Performance Monitoring" data
• Provides SourceMap crash log symbolication

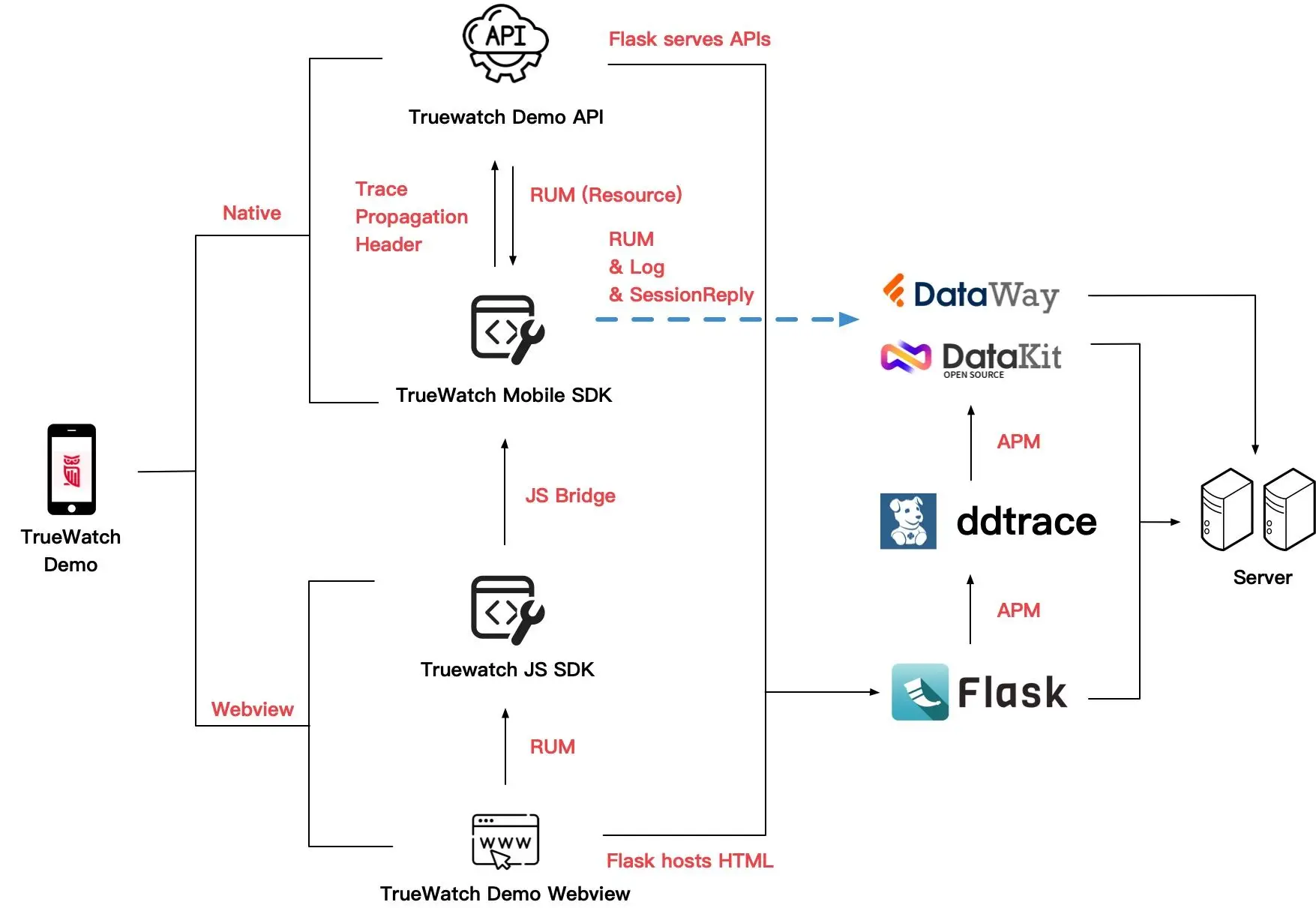

Structure Function Diagram

Environment Deployment

• Datakit Installation

• Configure Datakit/ddtrace

• Prepare Demo access files

  |-- app.py // HTTP access addresses required for Demo App configuration
  |-- static // Static files: js and image files
  	|-- dataflux-rum.js // TrueWatch Web js SDK
  	|-- images
  		|-- logo.png // Webview display icon
  		|-- demo-logo.png // Avatar display on the mobile "Mine" page
  	|-- jquery.mini.js // jquery js
  	|-- qrcode.mini.js // QR code processing
  |-- templates
  	|--index.html // Webview html accessed by Demo App
  	|--import_helper.html // TrueWatchDemo quick import configuration usage
  |-- update_input_value.py // Used to update datakit and Demo API addresses displayed in import_helper.html


  Copy

• Replace the address displayed in import_helper.html

  • Script replacement (requires python3 and beautifulsoup4 installed)

  python3 update_input_value.py demo-api-address-input $DEMO_API_ADDRESS templates/import_helper.html
  python3 update_input_value.py datakit-address-input $DATAKIT_ADDRESS templates/import_helper.html
  python3 update_input_value.py dataway-address-input $DATAWAY_ADDRESS templates/import_helper.html
  python3 update_input_value.py dataway-client-token-input $DATAWAY_CLIENT_TOKEN templates/import_helper.html

  Copy

  • Manually replace the corresponding datakit-address-input, demo-api-address-input in import_helper.html

  Variable	Meaning
  datakit-address-input	The Datakit Address input box id in import_helper.html
  dataway-address-input	The public Dataway address in import_helper.html
  dataway-client-token-input	The input box id for public Dataway clientToken in import_helper.html
  demo-api-address-input	The Demo API Address input box id in import_helper.html
  DATAKIT_ADDRESS	Local deployment datakit data access address, e.g.: http://10.0.0.1:9529
  DATAWAY_ADDRESS	Public dataway data access address, e.g.: http://10.0.0.1:9528
  DATAWAY_CLIENT_TOKEN	Token for public dataway authentication
  DEMO_API_ADDRESS	Demo api request address, e.g.: http://10.0.0.1:8000

• Start the Demo backend service

  DD_SERVICE=GC_SERVICE_SDK_DEMO \
  DD_SERVICE_MAPPING=postgres:postgresql,defaultdb:postgresql \
  DD_TAGS=project:sdk_demo,env:test,version:1.0 \
  DD_AGENT_HOST=localhost \
  DD_AGENT_PORT=9529 \
  ddtrace-run python3 app.py &> demo.log &

  Copy

For variable meanings, please refer to Datakit ddtrace Python deployment environment variables

Sourcemap Function

Sourcemap is used for app crash data symbolication.

Sourcemap Upload

There are two ways to upload sourcemap: curl or manual placement. Manual placement requires access to the datakit deployment machine.

Upload from TrueWatch Studio Web

Supports uploading source map via the Studio app upload source map

App Installation

• Android
  • External users need to build and install from source code
• iOS:
  • External users need to build and install from source code

TrueWatchDemo App Usage Instructions

TrueWatchDemo Datakit address and Demo api address can be changed at will. The first use must first "Edit Demo Configuration"

Login

The password is automatically filled in by default. Username truewatch Password admin

Edit Demo Configuration

"Login page" > "Edit Demo Configuration". After setting and saving the reporting address, you need to restart after the configuration is saved. For iOS, you need to manually kill the process in the background.

Local Deployment (Datakit)

Enter the corresponding RUM App Id, Datakit Address, and Demo API Address

Use Public DataWay

Enter the corresponding RUM App Id, Dataway Address, and Demo API Address

Import from Clipboard

After the server is deployed, you can quickly import the configuration by visiting http://{demo_api_url}/improt_helper page. The configuration can be accessed on the desktop by visiting the improt_helper page and scanning the QR code with your phone, or by visiting the improt_helper page on your phone and clicking "Copy Text" to get the configuration.

Troubleshooting

On the "Edit Demo Configuration" configuration page, you can perform "Address Check" for App access. You can find the entrance to "Edit Demo Configuration" on the "Login page" and the "Mine" page of the main interface.
